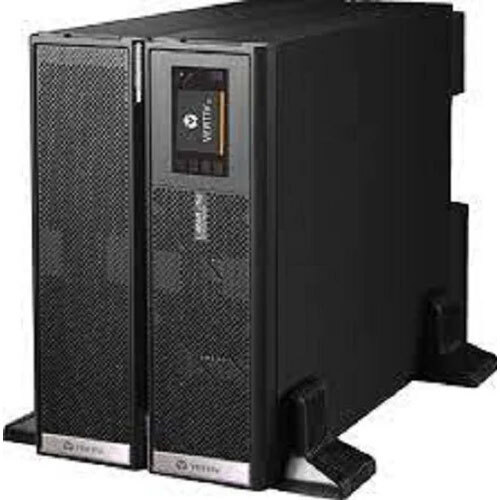

VERTIV UPS System

Name: VERTIV UPS System
Brand: NAMRATA POWER SYSTEMS
Price: 68170 INR
Availability: InStock

Price 68170 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VERTIV UPS System Specification

Port Type
Input/Output Terminal Blocks, USB, RS232

Power Capacity
3 kVA

Efficiency (%)
Up to 90%

Cooling System
Forced Air Cooling (Fan)

Material
Metal Enclosure

Batteries Type
Sealed Lead Acid, Maintenance Free

Control System
Microprocessor Controlled

Battery Backup
External & Internal Supported

Type
On-Line

Phase
Single Phase

Protection
Overload, Short Circuit, Overvoltage, Undervoltage, Surge Protection

Output Voltage
230V AC

Recharge Time
4-6 Hours (to 90% capacity)

Back-Up Time
10-30 Minutes (depending on load)

Interface Type
RS232, USB

Size
400mm x 220mm x 318mm

Weight
31 Kg Approx.

Color
Black

Warranty
1 Year

Transfer Time
0 ms (On-Line)

Input Voltage Range
110V - 300V AC

Frequency Range
50/60 Hz Auto Sensing

Installation Type
Floor Mounted

Display
LCD Display Panel

Operating Temperature
0 - 40°C

Humidity
0-95% RH, Non-Condensing

Noise Level
<50 dB at 1 Meter

Waveform Type
Pure Sine Wave

Applications
Servers, Data Centers, Medical Equipment, Telecom

Alarm
Audible and Visual Indication for Faults and Status

VERTIV UPS System Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About VERTIV UPS System

Vertiv UPS (Uninterruptible Power Supply) systems are renowned for their high reliability, energy efficiency, and advanced technology to ensure continuous, clean, and stable power for critical infrastructure. They are designed to safeguard IT systems, data centers, industrial operations, and telecommunications from power disruptions.

Uninterrupted Power Supply for Mission-Critical Tasks

VERTIV's online UPS system ensures zero transfer time between mains and battery mode, protecting your sensitive devices against power interruptions. Its comprehensive suite of protections and wide input voltage range make it ideal for Indian conditions, providing consistent power to servers, medical devices, and telecom infrastructure.

Intuitive Monitoring and Alerts

The unit is equipped with an LCD display panel and both audible and visual alarms to keep users informed about operational status and faults. The microprocessor-controlled system offers accurate real-time data, ensuring proactive management for continuous uptime and safety.

Robust Design and Flexible Compatibility

Designed for floor mounting, this UPS features a durable black metal enclosure with efficient forced air cooling. The system supports both internal and external sealed lead acid batteries, making it adaptable to varying power backup needs. Interface options include RS232 and USB for easy integration.

FAQ's of VERTIV UPS System:

Q: How does the VERTIV UPS System ensure uninterrupted power for critical equipment?

A: The VERTIV UPS System operates in on-line mode, providing zero milliseconds transfer time from mains to battery, which ensures continuous power to connected devices such as servers and medical equipment even during electrical interruptions.

Q: What process should I follow to install this UPS in my facility?

A: This system is designed for floor mounting. Ensure adequate space and ventilation, connect it to your power network via the input/output terminal blocks, and utilize the LCD panel to configure and monitor operation. Professional installation is recommended for optimal safety and performance.

Q: When should I perform maintenance on the UPS or its battery backup?

A: Routine maintenance is minimal due to the sealed, maintenance-free lead acid batteries. However, regular inspection of connections, cooling system, and battery health every six months is advised. Recharge time for batteries is typically 4-6 hours to reach 90% capacity.

Q: Where can the VERTIV UPS System be effectively deployed?

A: This UPS is suitable for a wide range of environments including server rooms, data centers, telecom operations, and medical facilities. Its robust design and broad operating temperature/humidity tolerance make it ideal for various locations within India.

Q: What benefits does the LCD display and alarm system offer for users?

A: The LCD panel provides clear, real-time information on system status, battery level, and operational modes. Audible and visual indications alert users instantly to faults or anomalies, allowing fast response and mitigation to ensure continuous power delivery.

Q: How does the VERTIV UPS protect connected devices from electrical issues?

A: Advanced protection mechanisms shield equipment against overloads, short circuits, overvoltage, undervoltage, and surges. Pure sine wave output further guarantees compatibility and safety for sensitive electronics by delivering stable and clean power.
